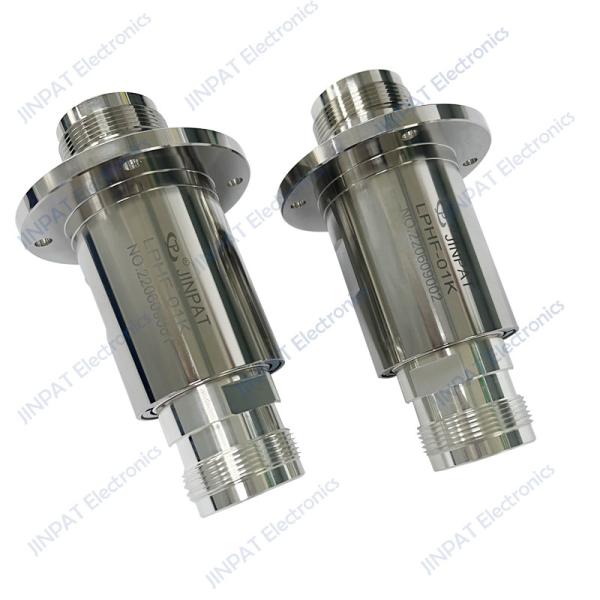

30MHz Fiber Optic Rotary Joints Ultra Long Life Maintenance Free

Name: 30MHz Fiber Optic Rotary Joints Ultra Long Life Maintenance Free
Brand: JINPAT
Price: 1 USD

China 30MHz Fiber Optic Rotary Joints Ultra Long Life Maintenance Free wholesale

Brand Name : JINPAT

Model Number : LPHF-01K

Certification : ISO9001.ISO14000.CE.UL.FCC.RoHS

Place of Origin : China

MOQ : 1PCS

Price : Negotiable

Payment Terms : T/T, C/C, Paypal

Supply Ability : 100 units/week

Delivery Time : 2 weeks ARO

Packaging Details : Standard/On Request

Rotating Speed,Max. : 100rpm

Frequency range : DC-30MHz

VSWR,max : 1.2

Optional : Integrated transmission of high frequency signal and power signal or other signals

Insertion Loss WOW : 0.1dB

Insertion Loss,Max. : 0.5dB

Starting Torque : 30Ncm Max

Contact Now

30MHz Fiber Optic Rotary Joints Ultra Long Life Maintenance Free

High frequency rotary joints include coaxial rotary joints, waveguide rotary joint, coaxial waveguide rotary joints.They are also known as high frequency slip rings and radio frequency slip rings.High frequency rotary joints are specially designed to transmit high speed serial digital signals like high definition signals, RF signals and microwave signals.The slip ring series support single channel and multi channels transmission of high frequency signals.There are also hybrid solutions that support hybrid transmission of high frequency signals with control signals,communication signals, power signals and fluid medium.

30MHz Fiber Optic Rotary Joints Ultra Long Life Maintenance Free

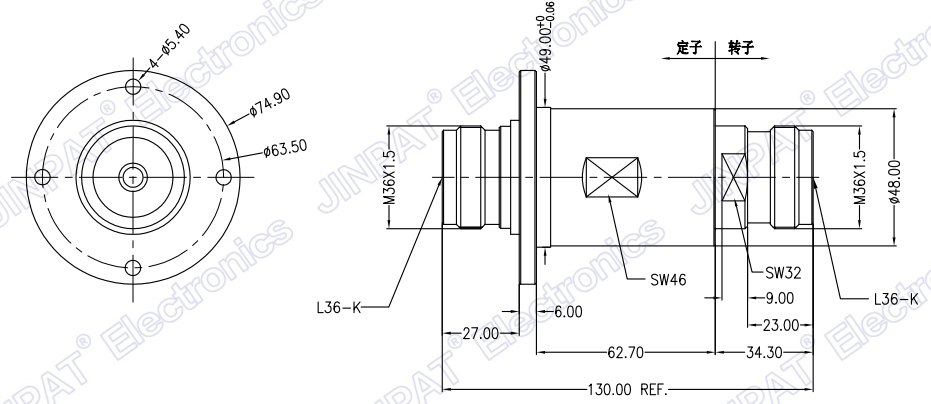

Specifications
Interface Tpe	L36-F(50Ω)	Axial Load On Interface,Max	±8N
Frequenc Range	DC-30MHz	Radial Load On Interface,Max.	±8N
VSWR,Max.	1.20	Bod Material	Brass
VSWR WOW	0.1	Insulator Material	PTFE
Insertion Loss,Max.	0.5dB	Marking	Laser Marking
Insertion Loss WOW	0.1dB	Weight,approx	2.7KG
Peak Power,Max.	20KW	IP Protection Level	IP40
Average Power,Max.	15KW	Operation Temperature	-45~+80°C
Phase WOW,Max	3°	Storage Temperature	-55~+85°C
Rotating Speed,Max.	100rpm	Humidit(Operation)	95％
Life Time,Min	5 Million Revolutions	Humidit(St)	95％
Starting Torque	30Ncm Max	Continuous Rotational Torque	30Ncm Max
