300RPM Miniature Capsule Slip Ring 6 Circuit 2A IP40, Integrated structure design

Name: 300RPM Miniature Capsule Slip Ring 6 Circuit 2A IP40 Integrated structure design
Brand: JINPAT
Price: 1 USD

Brand Name : JINPAT

Model Number : LPM-06A

Certification : ISO9001.ISO14000.CE.UL.FCC.RoHS

Place of Origin : China

MOQ : 1PCS

Price : Negotiable

Payment Terms : T/T, C/C, Paypal

Supply Ability : 500 pieces / week

Delivery Time : 2 weeks ARO

Packaging Details : Standard/On Request

Working Speed : 0~300rpm

Ciruits Total : 6CKT

Protection Grade : IP40

Material : RoHS Compliant

Type : mini slip ring

Application : Rolling machine,Amusement Equipment

Contact Material : Gold to Gold

Contact Now

300RPM Miniature Capsule Slip Ring 6 Circuit 2A IP40 For Robot / Smart Articulated Arm

LPM-06A Miniature Capsule Slip Rings

The LPC-06A capsule slip ring is a standard and off-the-shelf unit that uses gold contacts on the rotary interface. Color-coded lead wires are used on both the stator and rotor for simplifying electrical connections.

Using a 90° V-groove ring design for each ring, the LPC-06A provides smoother running, lower torque and lower electrical noise than similar slip rings. It is available in 6, 12, 18, 24, 36 to 125 circuit models.

Electronic & Electruc			Mechanical
Circuits	Total	6CKT	Working Speed	0~300rpm
	Detail	6X1A(You can go through 2A under certain circumstances )	Contact Material	Gold to Gold
Rating Voltage		110VAC/DC	Housing Material	Engineering plastics
Dielectric Strength		≥200VAC@50Hz(P) ≥100VAC@50Hz(S)	Lead Wire Length	Stator: 250士5mm Rotor: 250士5mm
Insulation Resistance		≥500MΩ@200VDC(P) ≥10MΩ@100VDC(S)	Dynamic Resistance Fluctuation Balue	≤35mΩ
35mEnvironment			Remarks
Working Temperature		-20°C~+60°	Application	/
Working Humidity		≤60%RH	Other	/
IP		IP40	Note:"P" stands dor power, "S" stands for signal

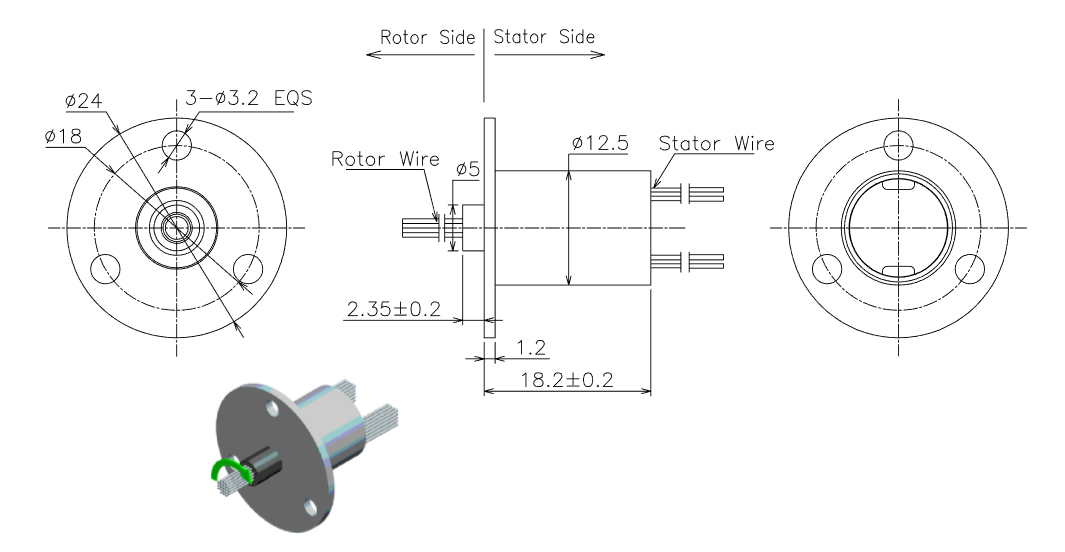

LPM-06A -Outline Drawing
