Mini Rotary Slip Ring 6 Circuit 0.5A Working Voltage 48V

Name: Mini Rotary Slip Ring 6 Circuit 05A Working Voltage 48V
Brand: JINPAT
Price: 1 USD

Brand Name : JINPAT

Model Number : LPMS-06A

Certification : ISO9001.ISO14000.CE.UL.FCC.RoHS

Place of Origin : China

MOQ : 1pcs

Price : Negotiable

Payment Terms : TT/CC/Paypal

Supply Ability : 100K units/week

Delivery Time : 1weeks

Packaging Details : Standard/On Request

Current Rating : 0.5A

Number of channels : 4 circuit

Working Temperature : -20~+60℃

Contact material : Precious metal

Contact Now

6 Circuits Compact Slip Ring with Flange and Gold-gold Contact

Description

The LPMS-LPMS-06A super miniature slip ring is a standard, off-the-shelf unit that uses gold contacts at the rotary interface. To simplify electrical connections, color-coded lead wires are used on both the stator and rotor.

The LPMS-06A allows tremendous flexibility in dealing with system size restriction when larger versions are not an option. It is available in 1 to 6 circuit configurations.

Specifications
Operating Speed	0-100 rpm
Circuits	6
Voltage	240 VAC/DC
Rated Current	0.5 amp per circuit
Temperature Range	-20℃ to +60℃
Contact	Precious metal
Lead Length	Standard 250 mm (9.843inch)
Insulation Resistance	100 MΩ @ 500 VDC
Electrical Noise	1mΩ Min
Housing	Stainless steel

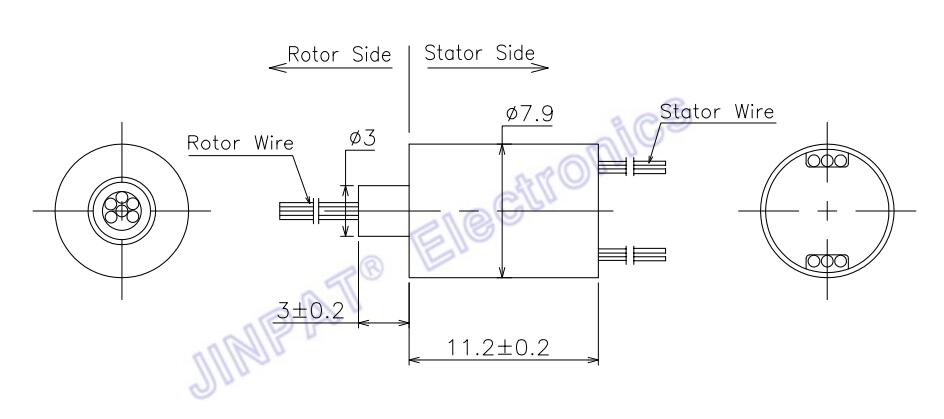

Outline drawing

Mini Rotary Slip Ring 6 Circuit 0.5A Working Voltage 48V

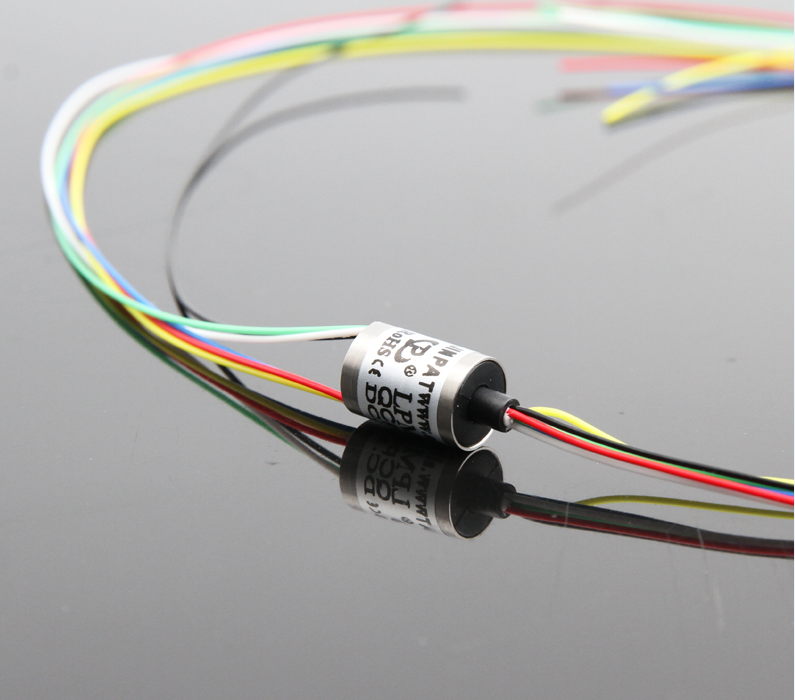

Product Image

Mini Rotary Slip Ring 6 Circuit 0.5A Working Voltage 48V
