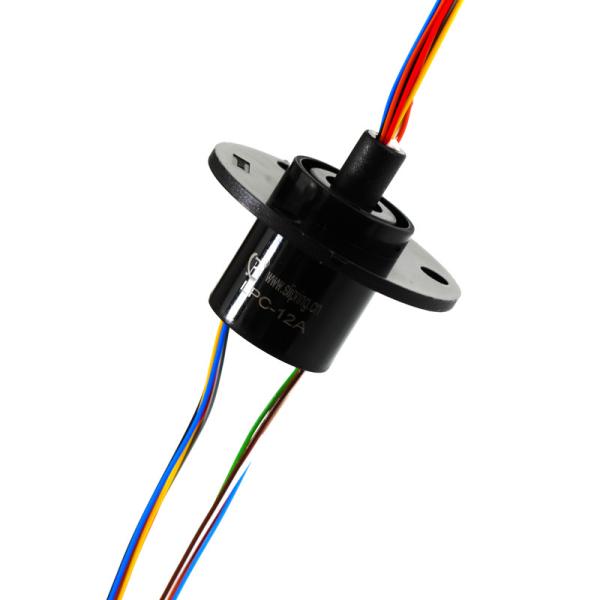

240 VAC/DC Electrical Slip Ring 12 Circuits 2A Per Circuit Up to 300 Rpm Rotating Speed
Description
The Slip Rings Series, thanks to its extreme compactness, guarantees a low outer speed between rings and brushes, thus to reduce material consumption so as to enhance its lifetime.This Series has been designed keeping flexibility, cost-effectiveness, and reliability in mind.
The LPC-12A capsule slip ring is a standard, off-the-shelf unit that uses gold contacts at the rotary interface. Color-coded lead wires are used on both the stator and rotor for simplified electrical connections.
This unit can be used in any electromechanical system that requires unrestrained, continuous rotation while transferring power or data from a stationary to a rotating structure. It is also called a rotary electrical interface, commutator, collector, swivel or an electrical rotary joint.
LPC-12A provides smoother running, It is available in 6, 12 circuits model.
| Specifications |
| Operating Speed | 0-300 rpm |
| Number of Circuits | 12 |
| Voltage | 240 VAC/DC |
| Current Rating | 2 amps per circuit |
| Temperature Range | -20℃ to +60℃ |
| Contact Material | Gold to Gold |
| Lead Size | 28# silver plated copper |
| Lead Length | Standard 250 mm (9.843inch) |
| Dielectric Strength | ≥500 VAC @50Hz, between each circuit |
| Insulation Resistance | 100 MΩ @ 500 VDC |
| Electrical Noise | 1mΩ Min |
| Capsule Length =L |
| # of Circuits | L (mm) | Part No |
| 12 | 26.43 | LPC-12A |
◆ The operating life of the unit depends upon temperature, rotation speed, and environment.
◆ The operating life ≥50,000,000 runs ref.

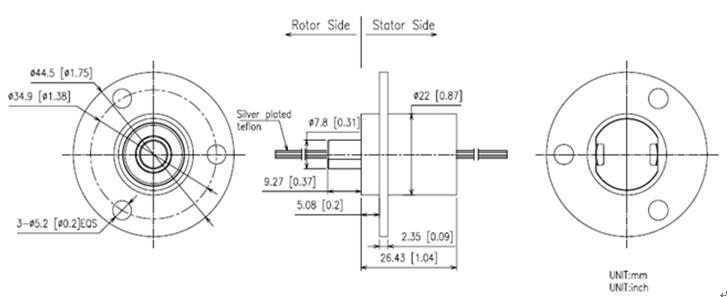

Outline Drawing

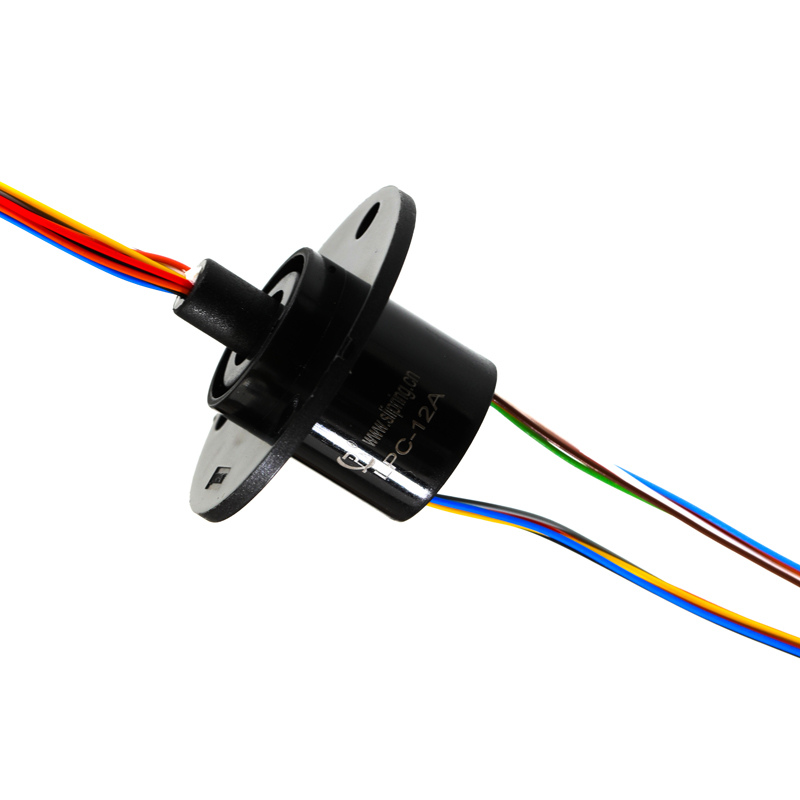

Product display
